μZDROJ – Micro Power Supply

120.00€
144.00€ with EU VAT

μZDROJ is 4HP width eurorack power supply module. This module uses high quality switching regulators.

Categories: , , Tags: , , , , ,

Description

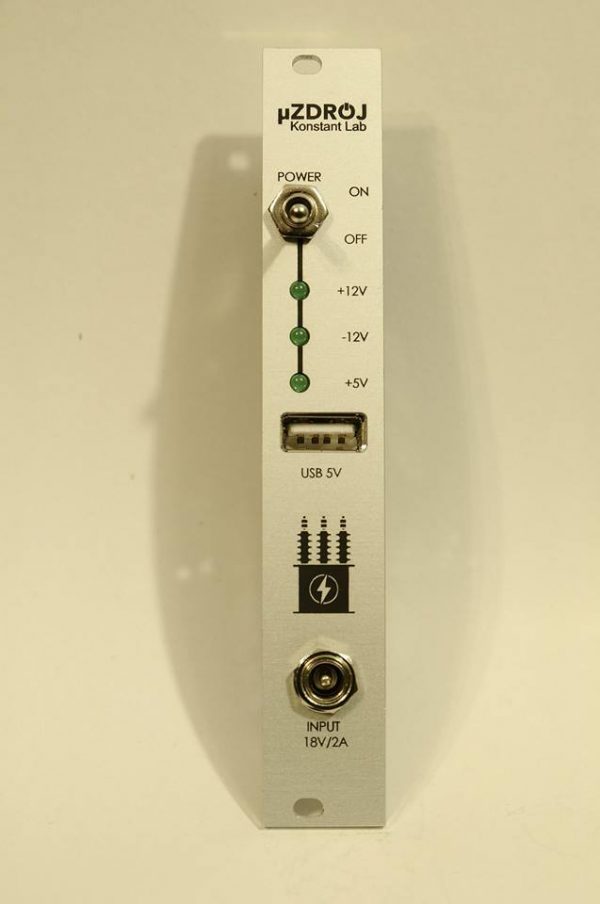

μZDROJ is 4HP width eurorack power supply module. This module uses high quality switching regulators. We have much experience with these regulators from other special industrial electronics. Regulators operates at high switching frequency with excellent efficiency that ensures low noise and no interference to other modules. Front panel contains USB connector for charging your smartphone, tablet or lighting supply. It is made from CNC milled anodized aluminium. Many electronic parts are SMD type. μZDROJ is made on PCB with copper thickness of 70 μm, which ensures reliability of μZDROJ and minimal losses on PCB routes.

Additional information

Weight 132 g
OUTPUT POWER

37W
WIDTH

4HP
OUTPUT VOLTAGES

+12V / 2A
-12V / 0.5A
+5V / 1.5A
OUTPUT STABILITY

±1% for 0-100% load
INPUT

18V (16-20V)
DEPTH

32mm
WEIGHT

55g
OUTPUT CONNECTORS

2x 16 pin IDC for flat cable
USB for +5V
INPUT CONNECTOR

5,5 x 2.1 DC input (center positive)
OTHER

70µm cooper thickness on PCB
Input over voltage protection
Input reverse polarity voltage protection
Output short circuit protection
Over current protection
LEDs indicate present and drop of output voltage
CNC milled alluminum panel with laser engraved graphics
ACCESSORIES

2 pcs ribbon flat cable (20cm)
2 pcs screw with plastic washer
