1UPWR – Power module for 1U row.

154.00
184.80 with EU VAT

1UPWR is a powerful, low noise, high-efficiency power supply solution for use with eurorack systems and portable eurorack cases that feature 1U rails.

Clear

Description

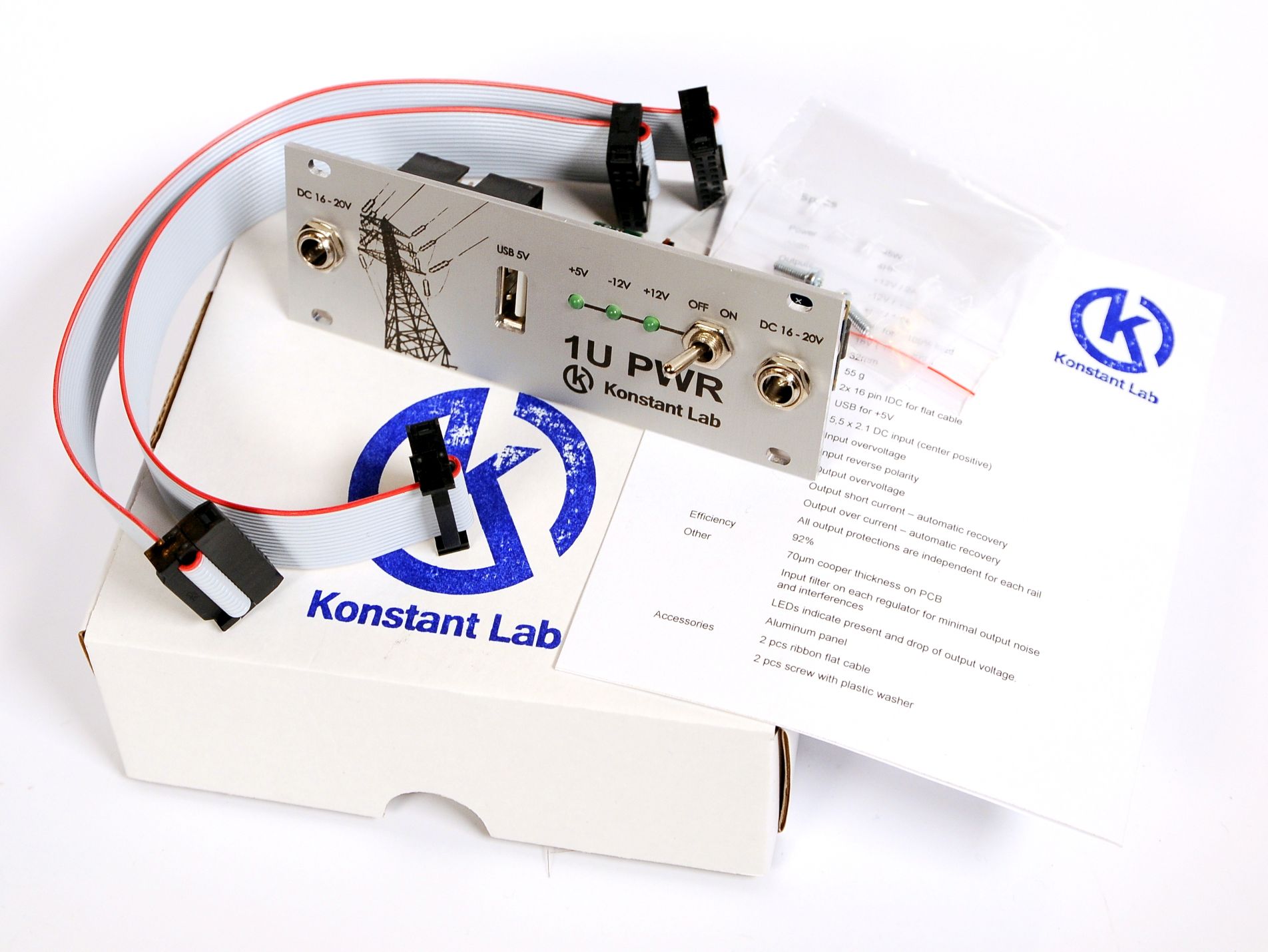

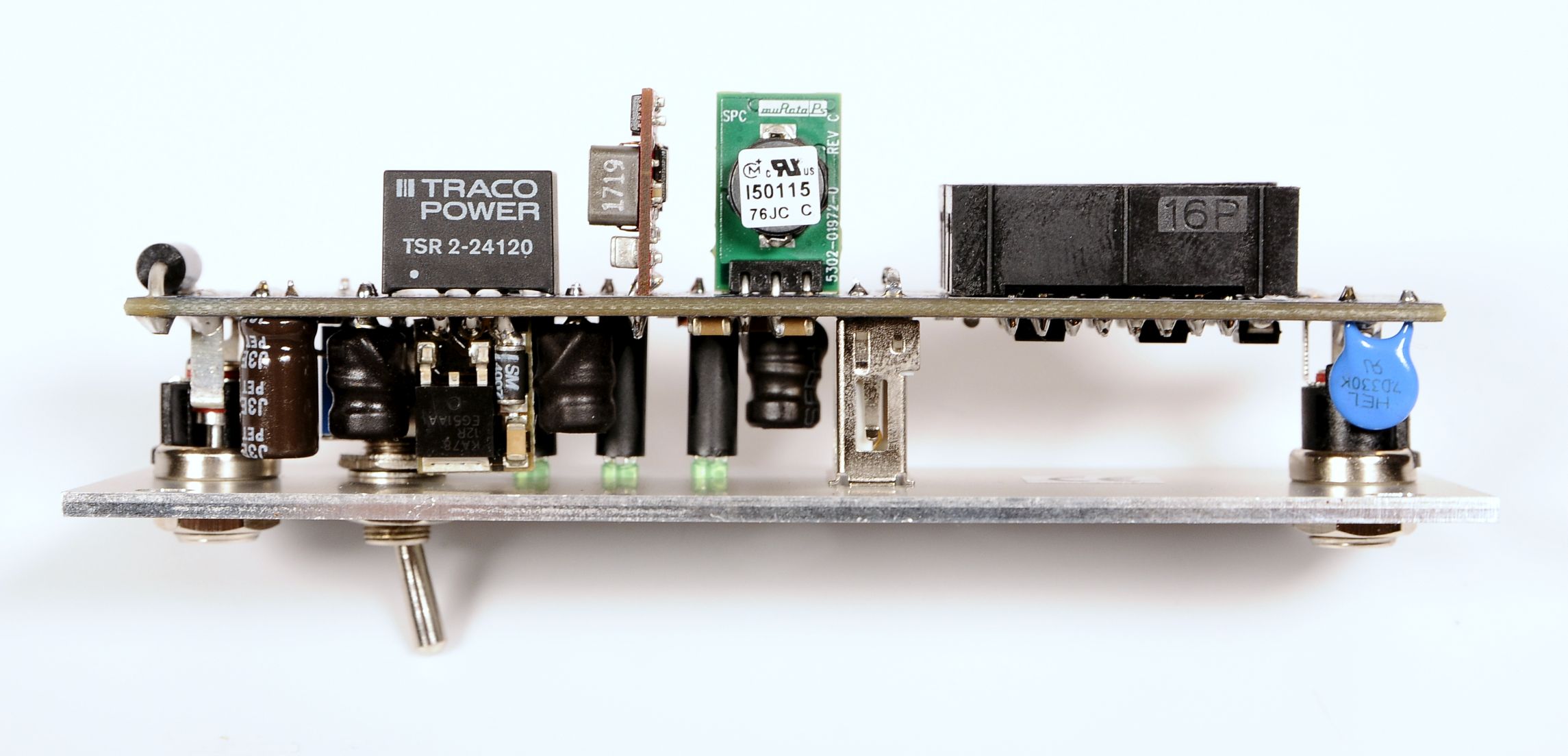

1UPWR is a powerful, low noise, high-efficiency power supply solution for use with eurorack systems and portable eurorack cases that feature 1U rails. Front panel contains a conveniently placed USB connector so you can charge external devices such as – your smartphone, tablet, lamp, or external sequencer. Under normal mode of operation when the power switch is ON, LED indications emit green light. LEDs go out when there is either a malfunction, overload, or short present so you always know when it is safe to work with your system. Front panel is made from high-quality CNC milled anodized aluminum. Many electronic parts are of SMD origin. 1U PWR is also made from quality PCB with copper thickness of 70um, which ensures high reliability of 1UPWR and minimal power losses on dedicated PCB routes. We recommend Meanwell GSM60A18-P1J DC Power Brick for one 1UPWR PSU and GST120A20-P1M for two 1UPWR PSU solutions.

Additional information

Weight 130 g
OUTPUT POWER

45W

PANEL SIZE

39,65mm (Intellijel size), 44,45mm (Pulplogic size)

WIDTH

22HP

OUTPUT VOLTAGES

+12V / 2A
-12V / 1.2A
+5V / 1.5A

OUTPUT STABILITY

±1% for 0-100% load

INPUT

18V (16-20V)

DEPTH

32mm

OUTPUT CONNECTORS

2x 16 pin IDC for flat cable
USB for +5V

INPUT CONNECTORS

5,5 x 2.1 DC input (center positive)

OTHER

70µm cooper thickness on PCB
Input filter on each regulator for minimal output noise and interferences
LEDs indicate present and drop of output voltage
CNC milled alluminum panel with laser engraved graphics

ACCESSORIES

2 pcs ribbon flat cable (20cm)
4 pcs screw with plastic washer
