BoardPWR SET – Eurorack “no HP” power supply bundle

229.00
274.80 with EU VAT

Everything that you need for powering up of your case is included in one complete SET. BoardPWR SET is the best choice on the market for eurorack studio and traveling cases.

Clear

Description

Konstant Lab Power SET is an ideal choice of power for DIY case builders. Everything that you need to power up your case is included in one complete SET. BoardPWR SET is the best choice for eurorack studio and traveling cases.

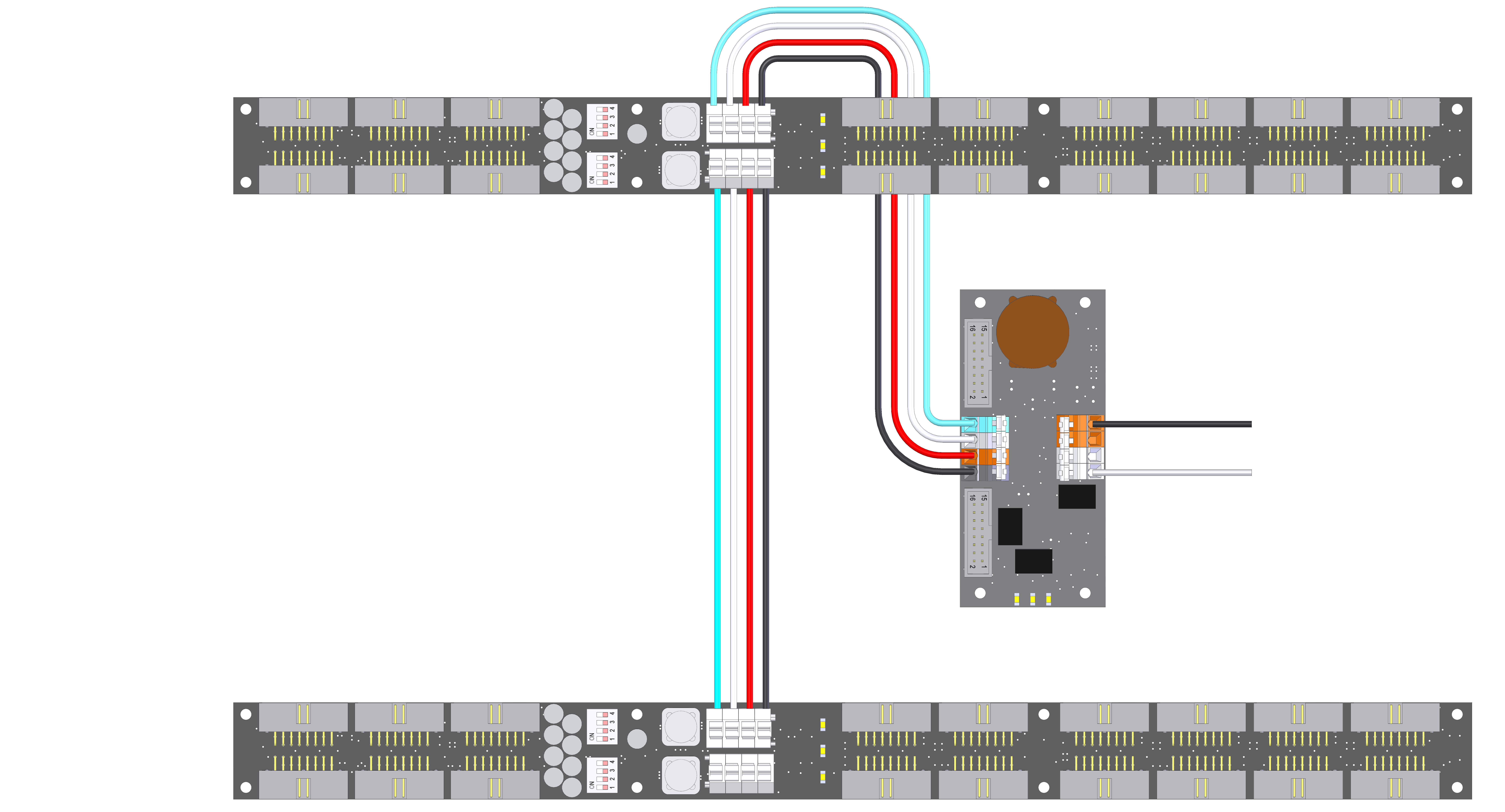

BoardPWR SET – includes a small 45W power board (zero HP) (+12V / 2A, -12V / 1.2A, +5V / 1.5A), power inlet panel with switch, two Filtered bus boards – each of them has 18 output headers (6 filtered and 12 direct) which ensures that you will be able to power up quite a lot of modules, 60W Meanwell medical type power brick, wires, spacers, and screws.

BoardPWR is a small and low weight PSU solution. You can mount it into your synth case without sacrificing any HP. BoardPWR is safely supplied from an external DC power brick (16-20V).

Filtered Bus Board is a low profile bus board with extra filtered output headers. Bus board contains 18 output headers. 12 direct headers and 6 filtered headers with LC filters. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality. Filters reject noise caused by PSU and digital modules by 70%. Each power rail is protected against overvoltage so your modules and system are safe under all conditions. 90% of the bus board area has only 11mm with inserted connectors. This feature makes Filtered bus board an ideal power distribution solution for skiff cases where depth is a concern.

Additional information

Weight 1162 g
Dimensions 43 × 30 × 5 cm
POWER

45w

OUTPUT

+12V / 2000mA, -12V / 1200mA, +5V / 1500mA

Typical output ripple noise

under 20mVpp / 20MHz BW

NUMBER OF HEADERS

Total 38 output shrouded headers

OTHER FEATURES

Overvoltage protection on PSU also on each bus board – keep your modules safe
High quality shock resistant "Push to Connect" terminals
Unique LC filtering circuits
LEDs indicate presence of voltage and voltage drop
Easy for montage and connection
Medical type Meanwell power brick with worldwide input range
All parts for PSU system included (PSU, Powerbrick, Busboards, powercord, Inlet with switch, wires, screws, spacers, fixing stripes…)

Plug

EU Plug, GB Plug, USA Plug

BoardPWR manual

Download

Inlet panel dimensions and cutout diagram

Download

Filtered Bus Board Manual

Download
