ZDROJ SET – High End Linear power supply bundle

249.00
298.80 with EU VAT

Everything that you need to power up your case is included in one complete SET. ZDROJ SET is the best choice for eurorack studio and traveling cases.

Clear

Description

Konstant Lab Power SET is an ideal choice of power for DIY case builders. Everything that you need to power up your case is included in one complete SET. ZDROJ SET is the best choice for eurorack studio and traveling cases.

ZDROJ SET – includes ZDROJ PSU. High End linear low noise power supply for eurorack synthesizers. (+12V / 1.5A, -12V / 1.5A, +5V / 0.7A), IEC power inlet panel with switch, two Filtered bus boards, each of them has 18 output headers (6 filtered and 12 direct) to ensure you can supply quite a lot of modules, power cord, wires, spacers, and screws.

ZDROJ is a High End linear low noise power supply for eurorack synthesizers. You can mount it into your synth case without sacrificing any additional HP. Inside of rigid metal enclosure is a PCB with electrical components, toroidal transformer, heatsink etc. On the covered side is an input connector for main voltage.

Filtered Bus Board is a low profile bus board with extra filtered output headers. Bus board contains 18 output headers. 12 direct headers and 6 filtered headers with LC filters. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality. Filters reject noise caused by PSU and digital modules by 70%. Each power rail is protected against overvoltage so your modules and system are safe under all conditions. 90% of the bus board area has only 11mm with inserted connectors. This feature makes Filtered bus board an ideal power distribution solution for skiff cases where depth is a concern.

Additional information

Weight 2400 g
Dimensions 43 × 30 × 5 cm
POWER

40w

OUTPUT

+12V / 1500mA, -12V / 1500mA, +5V / 700mA

MAX. OUTPUT NOISE RIPPLE

4.8mVpp / 20MHz BW

NUMBER OF HEADERS

Total 38 output shrouded headers

OTHER FEATURES

Overvoltage protection on PSU also on each bus board – keep your modules safe
High quality shock resistant "Push to Connect" terminals
Unique LC filtering circuits
LEDs indicate presence of voltage and voltage drop
Easy for montage and connection
Prewired IEC inlet with switch for your safety
All parts for PSU system included (PSU, Powercord, Busboards, inlet with switch, wires, screws, spacers, fixing stripes…)

Plug

EU Plug, GB Plug, USA Plug

Voltages

115V, 230V

ZDROJ - manual

Download

ZDROJ SET - wiring diagram

Download

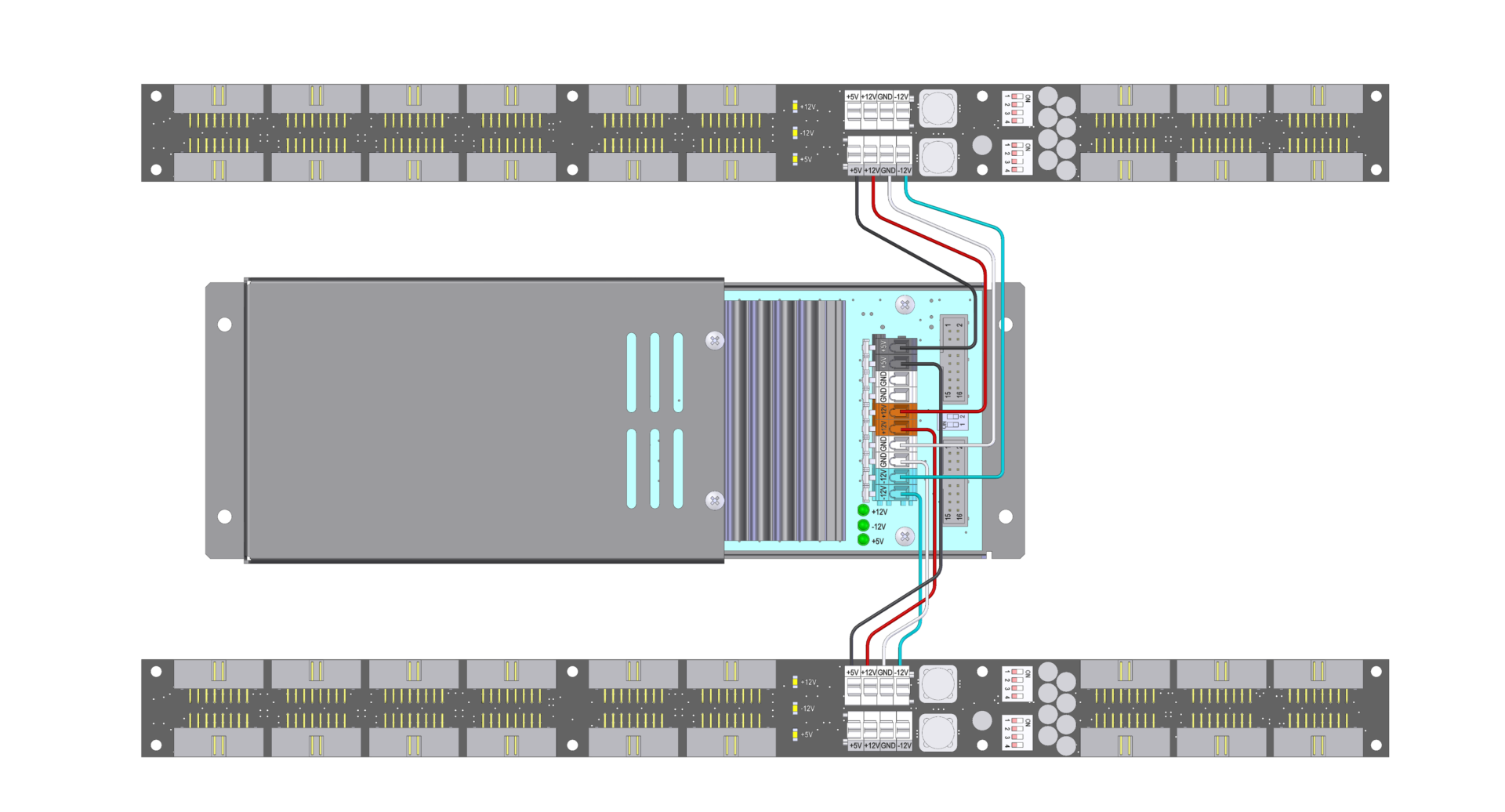

Wiring diagram of ZDROJ PSU and two Filtered Bus Boards connection.
